Introduction to DNS

The phone book of the internet is basically a DNS.

What is DNS?

DNS stands for Domain Name System, It’s a service the maps the human-friendly names to machine readable IP address. At a high level, you can think of it as a lookup table where domain names are mapped to their respective IP addresses (although the actual process is more complex).

What happens when you enter an address in your browser?

When you visit a website, such as traceintime.com, your browser cannot send an HTTP Request to a domain name until it knows the actual IP address. For that, it embarks on a discovery journey to determine the actual location of traceintime.com and where the request should be directed by contacting a DNS resolver.

  1. The user enters a website domain name e.g. traceintime.com in the browser.
  2. Since the browser doesn’t recognize traceintime.com, it sends a DNS query to a resolver.
  3. The resolver checks its cache for a stored IP address; if unavailable, it forwards the request to a DNS server.
  4. The DNS server responds with the corresponding IP address.
  5. Done!

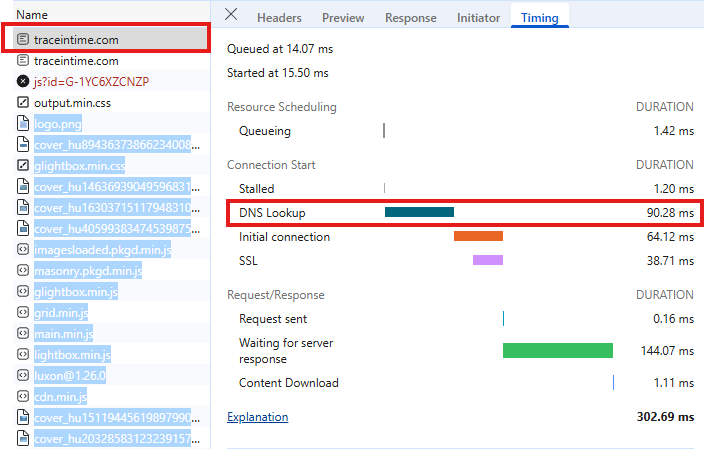

That’s basically how it looks in your browser request timeline As you’ve noticed, the connection started, then a DNS Lookup operation took place and in turn the connection was initiated after acknowledging the server’s IP address.

Note: The entire operation happens in a fraction of the second, and that is because of the way Domain Name Systems were designed and optimized for reads.

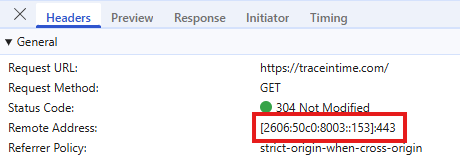

Does it mean i can actually visit a website by it’s IP Address?

Yes and No! If the target IP address hosts only one website, you can likely access it directly. However, if the server uses virtual hosting, the domain name is required to determine which specific website you want to visit.

Note: virtual hosting is not the only thing that prevents you from visiting a website by it’s IP address (more on that later).

Next

In the next article, we’ll delve more on the hierarchy of DNS.
